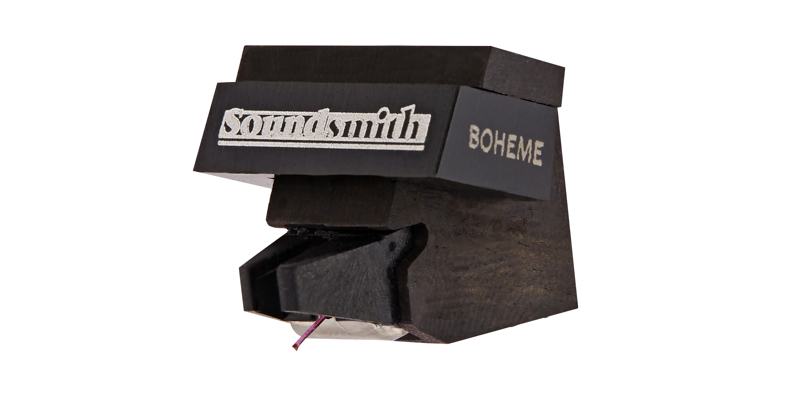

Boheme

Made in  the USA. Rebuild Price? ~  This model is out of production. Soundsmith normally rebuilds all our cartridges for 20% (or less) of the MSR Price, but parts for this model have increased dramatically. Still VERY much worth it! Rebuild Price is ~  $399   - The Boheme featured a 2 year warranty to the original owner.

The Boheme represents extreme value; featuring a single crystal Ruby Cantilever and low mass nude contact line diamond, the Boheme punches far past the performance of other cartridges in its price range.

A vibrant, lively and compelling cartridge, the Boheme will breathe new life into your system – opening up the true nature of the event of every type of recording, conveying far more music and emotion. A new suspension and ultra-light cantilever allow the Boheme to achieve sonic velocities and images with a deeper and broader acoustic palette.

Also available in dual-coil mono ($300 additional).

~ NO LONGER IN PRODUCTION ~

Warranty

Workmanship on this product is warranted for 2 full years

Specifications

Output

High

Available As Dual Coil Mono

Yes ($300 additional)

Additional Specifications




Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Cartridge Height:

• WITHOUT ALUMINA inserts = .675”  top to stylus tip – with two half round alumina pieces for ground isolation add .010”

• WITH center slot full round Alumina (use for azimuth adjustment if your arm does NOT allow such)  = .733”
Stylus:    • Contact Line, Nude, 0.10 mm square
Stylus: • Contact Line, Nude, 0.12 mm square Selected
Radius of Curvature: • Contact Line
Cantilever: • Ruby
Recommended Tracking Force: • 1.3 - 1.6 g Standard (Medium Compliance)
• 1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: • 0.32 mg
Compliance: • 22 µm/mN (Medium Compliance)
• 28 µm/mN (High Compliance)
Frequence Response: • 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz: • > 28 dB
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 20 dB
• N/A (Mono version)
Channel Difference: • < 1.4 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 2.12 mV (HIGH)
DC Resistance (DCR): • 680Ω
Coil Inductance per channel: • 190 mH
Suggested Preamp Gain: • 38 - 44 dB
Cartridge Weight: • 6.80 g
Recommended Load Resistance: • ≥ 47kΩ
Recommended Load Capacitance: • n/a
